Easy Surveying App
Smartphone de Survey (AR Ver.)
iPhone Saves Labor and Improves Efficiency in Daily Surveying
Summary
The AR version of "Smartphone de Survey" is an application that enables soil volume measurement and cross-sectional surveying of embankments and excavated soil using the AR (Augmented Reality) functionality on the iPhone and iPad(*1). No advance preparation for surveying is required. Anyone can easily take measurements simply by bringing an iPhone or iPad to the site and specifying the measurement area. The ability to check measurement results on the spot greatly reduces labor for routine surveying tasks in civil engineering and construction projects.
Features
One Person Can Easily Survey the Terrain

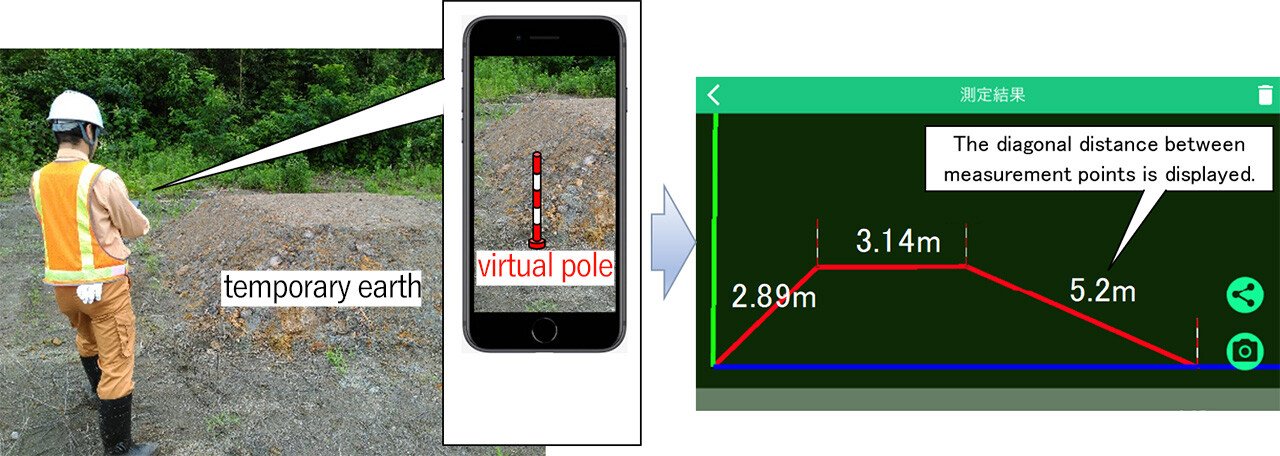

- A cross-sectional view can be easily created by erecting a virtual pole at an arbitrary point with the augmented reality (AR) function.
- Diagonal distances between measurement points are displayed on the cross-sectional view to help visualize the scale.

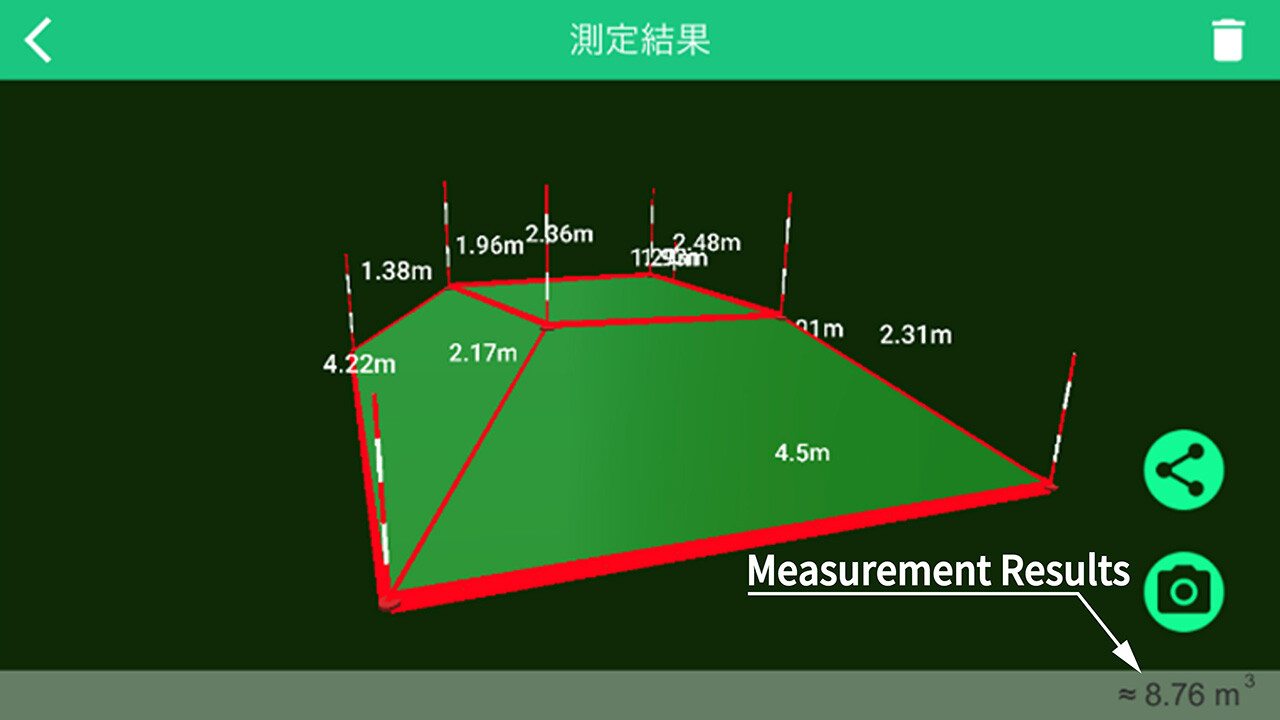

Instant Calculation of Fill Volume and Excavated Soil Volume
- Simply specify the measurement range on the iPhone screen, and the soil volume is automatically calculated.
- No advance preparation is required, reducing work time by 90% or more.
- It can survey an area of up to 1,000 m² with an accuracy of a few percent.

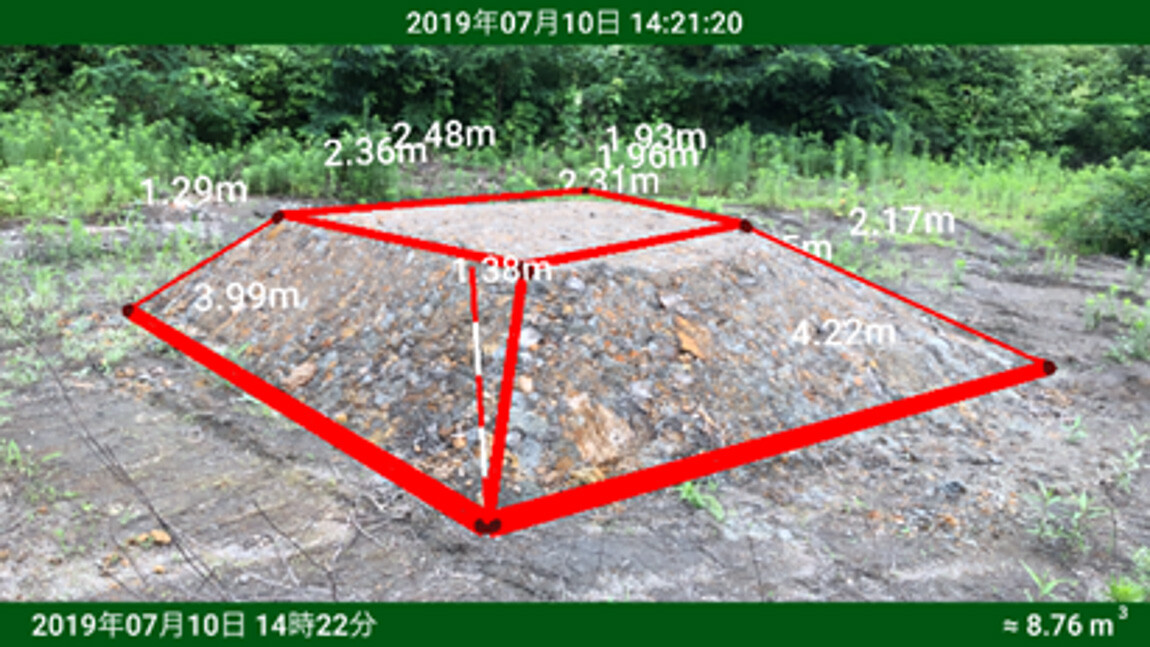

Combine Measurement Results into a Photograph
- With the AR function, you can combine the measurement results with a photo, allowing you to see immediately where the measurement was taken.
- *1 Compatible devices
iPhone 6s or later or iPad 5th generation or later. Supported OS is iOS 12.0 or later.
